CCS-30-C / Coin Recycling Module
The CCS-30-C is a compact cash recycling system that handles coin recognition, counting, depositing, and change circulation. It offers high reliability, ease of use, and low maintenance. By automating cash circulation, it reduces replenishment, counting, and box replacement time, minimizes downtime, and enhances operational efficiency.
Main application scenarios: Retail fee collection, public transport ticket vending, and any equipment requiring cash circulation and change functions.
Share:
• Advanced coin recognition and multi-dimensional detection for counterfeit detection (material, diameter, thickness).
• High-speed processing: 5 coins/second for receiving and output.
• Supports 50 coins input/output at a time.
• Large capacity for up to 8 denominations, 400 coins per denomination.
• Foreign body discharge function to automatically reject foreign objects after transactions.
• Forgotten coin recycling to recover coins left by customers.
• Automatic clearing of full hoppers into the recycling box.
|
Item |
Performance Specifications |
|
|
Coin-operated |
Coin-operated mode |
Multiple pieces at one time |
|
Coin slot capacity |
50 pieces (any denomination) |
|
|
Identify |
Currency |
Supports 250 coins of different denominations (one or more countries) at the same time |
|
Material |
Metal material |
|
|
Real currency acceptance rate |
≥99% |
|
|
Detection Methods |
Electromagnetic testing |
Multi-coil and multi-frequency detection of the coin surface and core material, as well as the coin size, etc. |
|
Speed |
Receiving speed |
5 pieces/second |
|
Change speed |
5 pieces/second |
|
|
Number of cyclic hoppers |
8 pieces |
|
|
Cycle Hopper Capacity |
The capacity of a single HOPPER is 400 pieces (calculated at RMB 50 cents) |
|
|
Coin Box |
3000 pieces (calculated based on RMB 50 cents) |
|
|
Foreign body removal |
Coin slot |
Supports foreign body removal |
|
Cash out |
Coin outlet capacity |
50 pieces |
|
Forgotten Recycling |
With coin outlet recovery function |
|
|
Upgrade |
Upgrade method |
With online download and upgrade function |
Environment
|
Environment
|
Operating temperature |
0℃～50℃ |
|
Storage temperature |
-20℃～60℃ |
|
|
Humidity |
20%RH～90%RH (Non-condensing） |
Electrical technical parameters
|
Item |
Specifications |
|
|
Electrical Interface |
Power supply |
AC110V-240V |
|
Rated frequency |
50-60Hz |
|
|
Communication interface |
Communication Protocol |
RS232 |
|
Baud rate |
19200 bps |
|
|
Inspection method |
No verification |
|
|
Communication parameters |
Data bit: 8 bits Start bit: 1 bit Stop bit: 1 bit |
|
|
Electromagnetic compatibility |
Comply with relevant national standards GB/T 17626 |
|

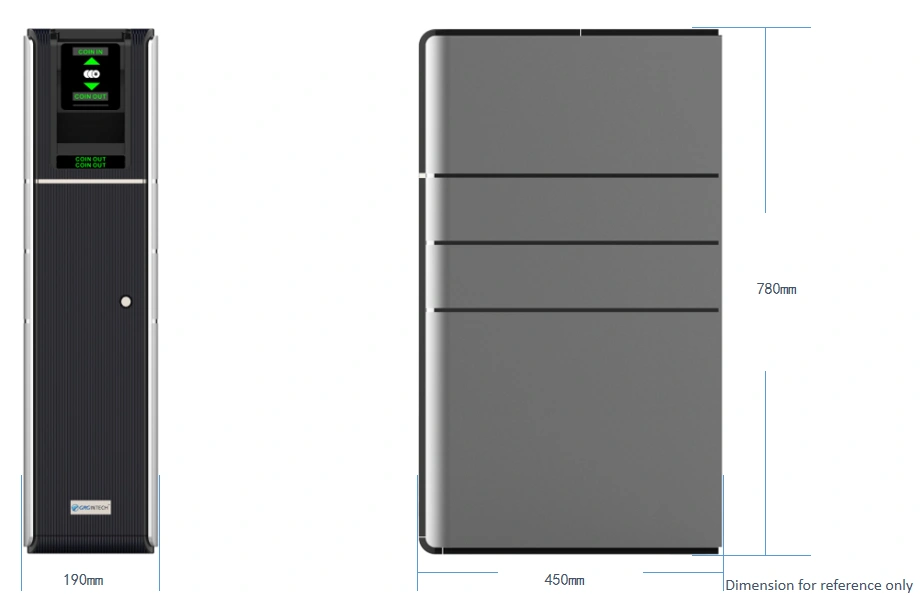

CCS-30-C coin circulation system dimensions: width 190 × depth 450 × height 780 (unit: mm)
